EDUC 847 Winter 24

class: center, middle, inverse, title-slide

.title[
# EDUC 847 Winter 24
]
.subtitle[
## Week 3 - Data for Linear Modeling
]
.author[
### Eric Brewe <br> Professor of Physics at Drexel University <br>
]
.date[
### 29 January 2024, last update: 2024-01-31
]

---

class: center, middle

# Let's start where we ended last class...Scatter Plots

Start by getting the data into R

```r
#This loads the csv and saves it as a dataframe titled week_1_data

week_1_data <- read_csv(here("static/slides/EDUC_847/data",
                             "EDUC_847_Survey.csv"))
```

---
# Let's start cleaning up.

```r
week_1_data %>%
  select(ID,Q2:Q6) %>%
  filter(row_number() >3 ) %>%
* mutate(across(c(Q2:Q3,Q5:Q6), as.numeric)) -> w1df
```

---
# Let's remember what we did last week

### Is there a relationship between length of book and estimates on weight of cow?

.pull-left[
### Making a scatter plot to explore

```r
w1df %>%
  select(Q5:Q6) %>%
  ggplot(aes(x = Q5, y = Q6)) +
  geom_point() +
  theme_minimal() +
  labs(x = "Pages",
       y = "Weight of Cow",
       title = "Kick Ass Scatterplot!")
```

]

.pull-right[
![](EDUC_847_Week_3_files/figure-html/unnamed-chunk-1-1.png)

]

A **residual** is the distance between the Y value for each measurement, and the predicted Y value.

---
# Let's make a linear regression model

### We want the estimated weight of the cow as predicted by the length of the book closest to the survey respondent.

```r
*Model1 <- lm(Q6 ~ Q5, data = w1df)

Model1
```

```
##
## Call:
## lm(formula = Q6 ~ Q5, data = w1df)
##
## Coefficients:
## (Intercept)           Q5
##   1668.7235       0.3001
```

---
# Let's dig into our model

```r
summary(Model1)
```

```
##
## Call:
## lm(formula = Q6 ~ Q5, data = w1df)
##
## Residuals:
##      1      2      3      4      5      6      7
## 2638.4 -478.3 -933.6 -274.3 -229.5 -285.5 -437.0
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept) 1668.7235   723.6088   2.306   0.0692 .
## Q5             0.3001     1.8163   0.165   0.8753
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 1301 on 5 degrees of freedom
## Multiple R-squared:  0.005429,	Adjusted R-squared:  -0.1935
## F-statistic: 0.02729 on 1 and 5 DF,  p-value: 0.8753
```

---
# Let's think about this model...

## F-Statistic = 0.02729
This is a ratio of the Model Sum of Squares vs. the Residual Sum of Squares

## p = 0.8753
This is the percent of time you would have to be willing to have a type one error (False Positive)

## This model doesn't fit very well.

---
# Let's think about the Intercept

## Intercept = 1668
This tells us the average predicted weight of the cow.

## Standard Error = 723.6
`\(SE = \frac{\sigma}{\sqrt{N}}\)`

## t value = 2.3006
`\(t = \frac{Intercept}{Standard Error} = \frac{1668.7}{723.6} = 2.03\)`

## p = 0.0692
Depending on our predetermined willingness to accept false positives, this tells us whether a result is "statistically significant".

It is not.
---
# Let's think about the Q5 coeff.

## Q5 = 0.3001
The average additional weight added for each additional page in the closet book.

## Standard Error = 1.8163
`\(SE = \frac{\sigma}{\sqrt{N}}\)`

## t value = 0.165
`\(t = \frac{Intercept}{Standard Error} = \frac{.3001}{1.8163} = 0.165\)`

## p = 0.8753
Depending on our predetermined willingness to accept false positives, this tells us whether a result is "statistically significant".

It is not.
---
# Let's think about why this model is a failure

## Maybe it is because we violated the assumptions?
And what are those assumptions?
from https://learningstatisticswithr.com/book/regression.html#regressionassumptions

---
# Let's think about why this model is a failure

### Normality of Residuals
Residuals are distributed normally.

### Linearity
Predictor and Fitted are linearly related

### Homogeneity of varicance
The standard deviation of the residual is the same at all values of the Outcome

### Uncorrelated predictors
The correlations between predictor variables is small (We'll come back to this)

### No bad outliers
There aren't any individual data points that are really impacting our model

---

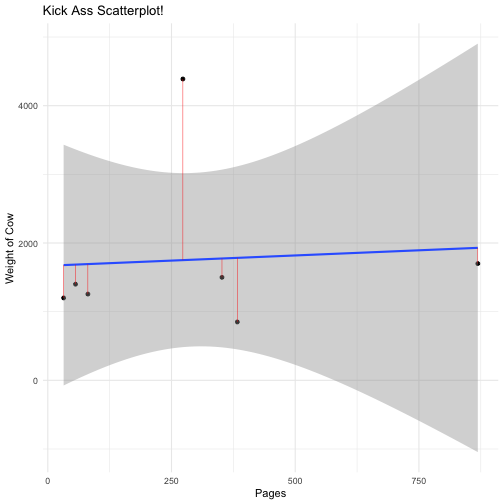

# Let's check out those residuals...
.pull-left[
![](EDUC_847_Week_3_files/figure-html/ScatterPlotWithResiduals-1.png)

]
.pull-right[

```r
augment(Model1) %>%
  select(Q5:.resid)
```

```
## # A tibble: 7 × 3
##      Q5 .fitted .resid
##   <dbl>   <dbl>  <dbl>
## 1   273   1751.  2638.
## 2    32   1678.  -478.
## 3   383   1784.  -934.
## 4   352   1774.  -274.
## 5   869   1929.  -229.
## 6    56   1686.  -286.
## 7    81   1693.  -437.
```
]

---

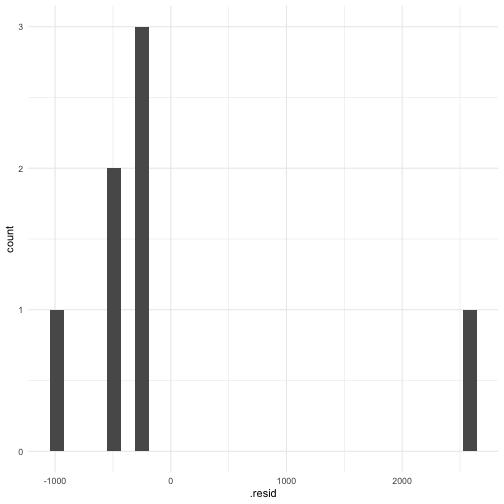

# Let's check the normality residuals...

We can do a histogram of the residuals

.pull-left[
![](EDUC_847_Week_3_files/figure-html/ResidualHist-1.png)

]
.pull-right[

```r
mod_df <- augment(Model1)

mod_df %>%
  ggplot(aes(y = .resid)) +
  geom_histogram() +
  theme_minimal() +
  coord_flip()
```
]

Doesn't look normal!  Could confirm with a Shapiro-Wilk test...

---

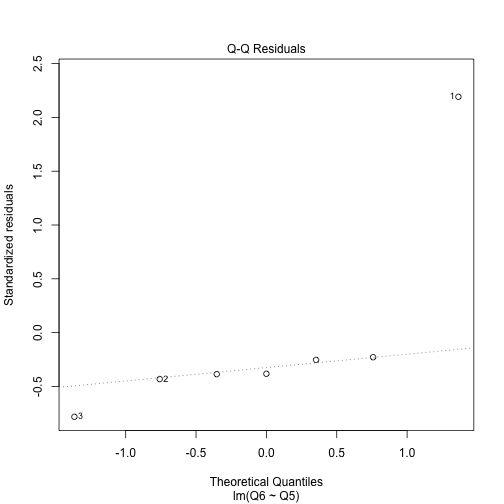

# Let's check the normality residuals...

We can do a Q-Q plot
.pull-left[
![](EDUC_847_Week_3_files/figure-html/QQPlot-1.png)

]
.pull-right[

```r
plot(x = Model1, which = 2 )
```

## Should be a straight line

## Should have a slope = 1

Not so much

]
---
# Let's check the linearity assumption

We can do a scatter plot of the Outcome (Q6) vs. the Fitted (the result of the eqn. )
.pull-left[
![](EDUC_847_Week_3_files/figure-html/OutcomeVsFitted-1.png)

]
.pull-right[

```r
plot(x = Model1, which = 1 )
```
## Should be a straight line

Not so much

]
---

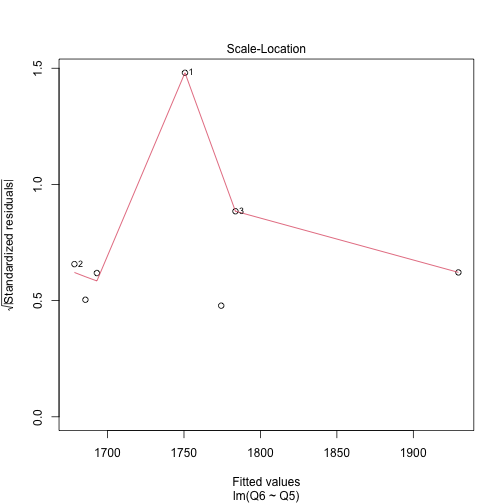

# Let's check the homogeneity of variance assumption

We can do a scatter plot of the standardized residuals vs. the Fitted values (the result of the eqn. )
.pull-left[
![](EDUC_847_Week_3_files/figure-html/StdResidualsVsFitted-1.png)

]
.pull-right[

```r
plot(x = Model1, which = 3 )
```

## Should be a straight horizontal line

Not so much

]
---

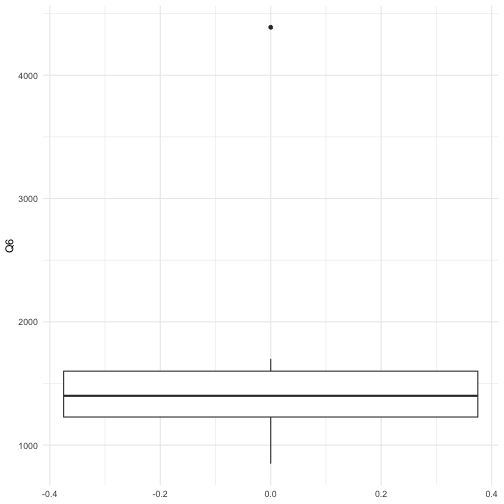

# Let's check the no bad outliers assumption

We can do a boxplot to get a sense
.pull-left[
![](EDUC_847_Week_3_files/figure-html/BoxPlot-1.png)

]
.pull-right[

```r
w1df %>%
  ggplot(aes(y = Q6)) +
  geom_boxplot() +
  theme_minimal()
```

## Note the one way up above might be an outlier

We should confirm.

]

---

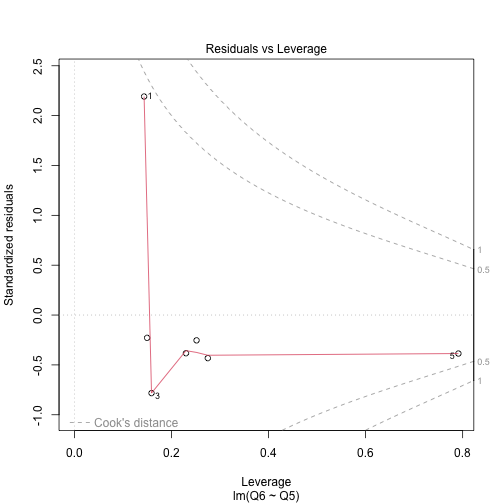

# Let's check the no bad outliers assumption

We can check the leverage of the model
.pull-left[
![](EDUC_847_Week_3_files/figure-html/Leverage-1.png)

]
.pull-right[

```r
plot(Model1, which = 5)
```

## Looks like observations 5 might have much larger leverage?

We should confirm.

]
---
# Let's revisit our model

## Maybe, just maybe this model is junk because...

There is no good reason to think that the number of pages in the book closest to you when you answered this survey has any bearing on how much you would estimate a cow to weigh!

---
# Let's try this with a different model

```r
w3df <- read_csv(here("static/slides/EDUC_847/data",
                             "science_scores.csv"))

sci_model <- lm(sci ~ math_sc, data = w3df)
```
---
# Let's try this with a different model

```r
summary(sci_model)
```

```
##
## Call:
## lm(formula = sci ~ math_sc, data = w3df)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -126.81  -22.79    0.91   23.73  106.45
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept) 211.9746     8.3712   25.32   <2e-16 ***
## math_sc       6.0253     0.1223   49.27   <2e-16 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 34.98 on 498 degrees of freedom
## Multiple R-squared:  0.8298,	Adjusted R-squared:  0.8294
## F-statistic:  2427 on 1 and 498 DF,  p-value: < 2.2e-16
```
---
# Let's look at hypothesis testing for the model

## Statistical significance tells us whether or not we can reject the null hypothesis

1. What is the null model?
2. What is our tolerance for type 1 error? (p-value)
3. Is this model different from the null model?

---
# Let's look at hypothesis testing for the model

## Statistical significance tells us whether or not we can reject the null hypothesis

1. What is the null model?  The intercept only model.
2. What is our tolerance for type 1 error? (p-value) Typically 95%
3. Is this model different from the null model? Yes.  We know because the F-statistic is very large, and the p- value is less than 0.05 (5%).

---
# Let's look at hypothesis testing for the coef

## Statistical significance tells us whether or not we can reject the null hypothesis

1. What is the null model?
2. What is our tolerance for type 1 error? (p-value)
3. Is this model different from the null model?

---
# Let's look at hypothesis testing for the coefficient

## Statistical significance tells us whether or not we can reject the null hypothesis

1. What is the null model?  the coefficient = 0
2. What is our tolerance for type 1 error? (p-value) typically 95%
3. Is this model different from the null model? Yes!  The t-value for the math_sc is 49.27, p << 0.05

---
# Let's look at confidence intervals

For a coefficient, we first establish a tolerance for false positives (95%), then...

`\(C.I. = b \pm t_{crit} * S.E.(b)\)`

```r
confint(sci_model, level = 0.95)
```

```
##                  2.5 %     97.5 %
## (Intercept) 195.527476 228.421823
## math_sc       5.784981   6.265545
```
