Welcome Back!

Our project is about building and analyzing the Workshop network

We will continue to use the data file from yesterday, WorkshopNetwork.rds.

library(tidyverse) #tools for cleaning data
library(igraph)  #package for doing network analysis
library(tidygraph) #tools for doing tidy networks
library(here) #tools for project-based workflow
library(ggraph) #plotting tools for networks
library(boot)  #to do resampling

Let's load our data

gr <- readRDS(here("data", "WorkshopNetwork.rds"))

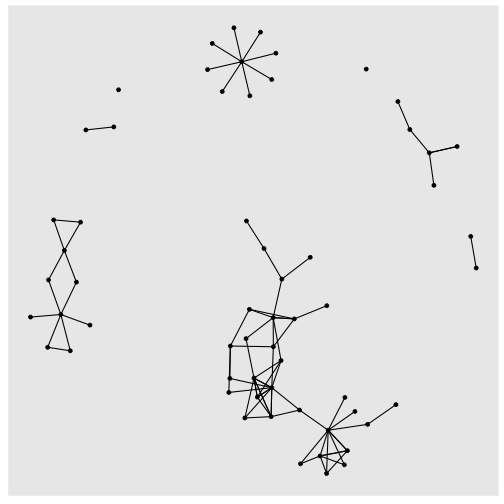

Let's plot it quickly

While we are at it we might as well set a layout.

```r
GrLayout <- create_layout(gr,
                          layout = "kk")
ggraph(GrLayout) +
  geom_edge_link() +
  geom_node_point() +
  theme(legend.position="bottom")
```

Let's explore whole network metrics

These are fairly easy to calculate

• Density: Proportion of possible connections that exist
• Diameter: Longest Shortest Path across network
• Reciprocity: Extent to which each directed edge is a two way edge
• Transitivity: Extent to which three connected nodes form triangles
• Average Path Length: Average shortest distance between every pair of nodes

These require a bit more work

• Giant: Number of nodes connected to largest component
• Homophily: Extent to which nodes with similar attribute are connected
• Average degree: This is pretty descriptive.

This is a list of many common graph metrics used in tidygraph https://rdrr.io/cran/tidygraph/man/graph_measures.html

Lets calculate a couple of these...

For many of these it is a very simple one line command.

Here is density

edge_density(gr)

## [1] 0.02853107

Here is diameter, note that with tidygraph you have to use the with_graph() function, and specify the graph and function graph_diameter()

with_graph(gr, graph_diameter())

## [1] 6

So?

Let's calculate a couple of others

It is your turn, choose one of the ones that are easy to calculate and make the calculation.

with_graph(gr, graph_reciprocity()) #Reciprocity

## [1] 0.2142857

transitivity(gr) #Transitivity

## [1] 0.2669492

with_graph(gr, graph_mean_dist()) #Average Distance

## [1] 1.88125

Let's create a function

Creating a function accomplishes two things:

1. We can calculate some of the harder to calcluate metrics
2. We do not have to re-do each time we want to analyze a new network.

GrFunction <- function(gr){
  Giant = max(clusters(gr)$csize)
  AveDeg = gr %>%
    activate(nodes) %>%
    mutate(Deg = centrality_degree( mode = 'total') ) %>%
    select(Deg) %>%
    as_tibble() %>%
    summarise(AveDeg = mean(Deg))
  df = tibble(Giant, AveDeg )
  return(df)
}

Let's run this function

GrFunction(gr)

## # A tibble: 1 × 2
##   Giant AveDeg
##   <dbl>  <dbl>
## 1    30   3.37

What do these numbers mean?

Giant = 30, there are 30 people connected in the largest component.

AveDeg, the average person has 3.37 incoming or outgoing edges

Let's talk about clustering

Whole networks sometimes have regions which are different.

Perhaps you want to know, are there groups that have some common characteristic?

So we need a way to look for groups within our network.

Start with random assignment:

```r
#First generate a grouping based on random assignment.
gr %>%
  activate(nodes) %>%
  mutate(RandGroup = sample(1:2,60, replace = TRUE)) -> gr
```

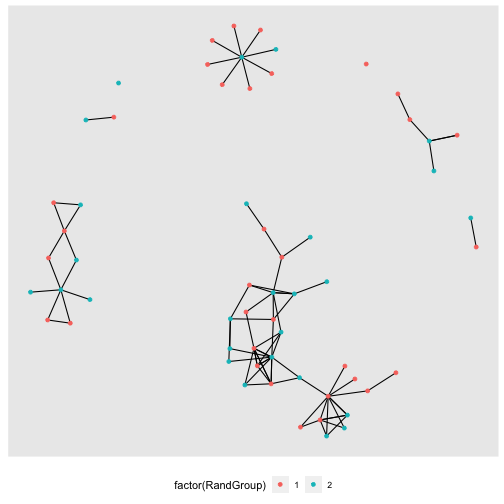

Let's plot this with the random assignment to groups

```r
GrLayout <- create_layout(gr,
                          layout = "kk")
ggraph(GrLayout) +
  geom_edge_link() +
  geom_node_point(aes(color = factor(RandGroup))) +
  theme(legend.position="bottom")
```

Let's talk about Modularity

Modularity is a metric that tells us whether there is a way to break up our network into chunks which have more connections within the chunk than from the chunk to other parts of the network.

with_graph(gr, graph_modularity(group = RandGroup)) #Modularity

## [1] 0.01470444

So the modularity of our network with nodes randomly assigned to groups is .12

This means that based on our grouping, there is a very slightly greater proportion of links between members of the group than across groups.

Let's use an actual community detection algorithm

We'll use Walktrap, in which a random surfer can jump node to node based on the presence of edges. Then the walktrap algorithm establishes community structure by finding the propensity to end up in a cluster of nodes.

There are two ways to do this...

#First generate a grouping based on the walktrap algorithm and add it to the graph.
gr %>%
  activate(nodes) %>%
  mutate(WTGroup = group_walktrap()) -> gr
#The other way is to just call the walktrap algorithm.
wtg <- with_graph(gr, group_walktrap())
wtg

##  [1]  9  3  5  1  2  7  2  4  1  1  4  3  1  5  6  3  8  2 10  1  1  4  5  3  2
## [26]  4  4  6  1  4  4  4  1  7  3  2  2  2  2  2  4  1  1  1  1  1  3  3  3  3
## [51]  3  1  1  5  5  6  6  8  2  1

Let's talk about Modularity

Now we can check the modularity with the walktrap defined communities

with_graph(gr, graph_modularity(group = WTGroup)) #Modularity

## [1] 0.7393393

So the modularity of our network with nodes assigned to groups via the walktrap algorithm is .74

This means that based on our grouping, there is a much greater proportion of links between members of the group than across groups.

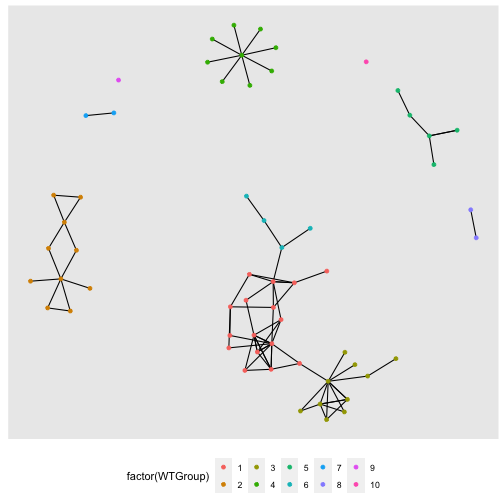

Let's plot the walktrap communities

This is the hard way to plot these.

```r
GrLayout <- create_layout(gr,
                          layout = "kk")
ggraph(GrLayout) +
  geom_edge_link() +
  geom_node_point(aes(color = factor(WTGroup))) +
  theme(legend.position="bottom")
```

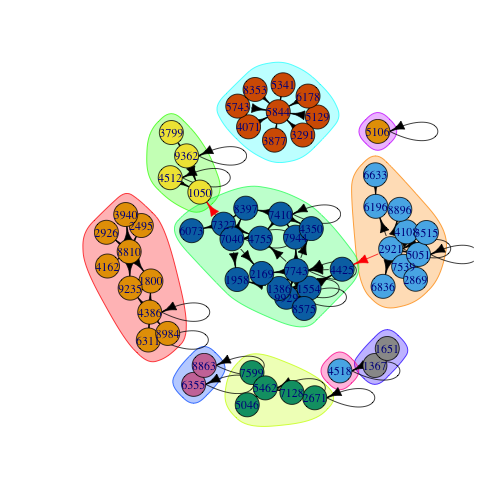

Let's plot the walktrap communities again

This is the easy way to plot these (though not tidy).

```r
wtg = cluster_walktrap(gr)
modularity(wtg)
plot(wtg, gr)
```

## [1] 0.6267523

Now it is your turn

• Choose a community detection algorithm,
• calculate it for the Workshop Network, and
• be ready to talk about what the salient points of the community detection algorithm you chose.

Here are the community detection algorithms available to you in tidygraph. https://tidygraph.data-imaginist.com/reference/index.html#community-detection
